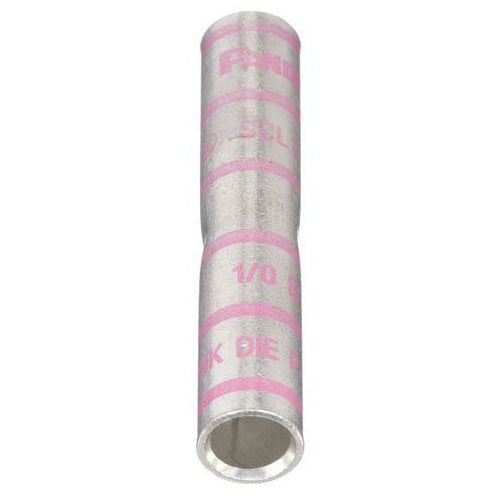

Panduit SCL1/0-X Copper Butt Splice Long 1/0Awg Pkg 10

Overview

Panduit SCL1/0-X Copper Butt Splice Long 1/0Awg Pkg 10

Product Specifications

• UPC: 07498390425
• Length: 2.87 Inch
• Inner Diameter: 0.39 Inch
• Outer Diameter: 0.52 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SCL1/0-X
• Model: SCL
• Type: Butt
• Voltage Rating: 35 KV
• Conductor Size: 1/0 AWG
• Conductor Material: Copper
• Color Code: Pink
• Barrel Type: Long
• Catalog Description: COPPER BUTT SPLICE, LONG BARREL, 1/0 AWG WIRE.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 2.87 Inch; 0.39 Inch Inner Diameter; 0.52 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 1/0 AWG Conductor Size; Pink Color Code; Long Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCL Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983904259
• SKU Name: pand scl1/0x

Resources

• Technical Drawing
