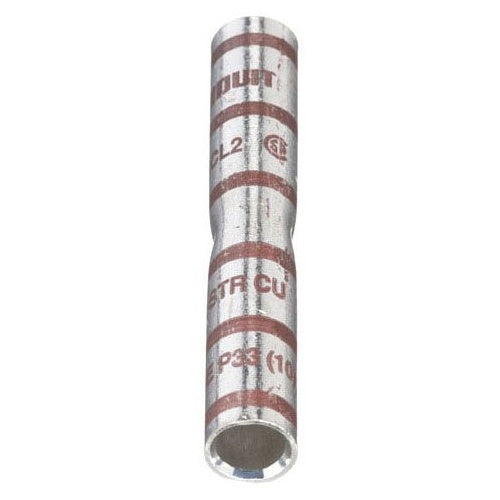

Panduit SCL2-Q Copper Butt Splice Long #2Awg Pkg 25

Overview

Panduit SCL2-Q Copper Butt Splice Long #2Awg Pkg 25

Product Specifications

• UPC: 07498390441
• Length: 2.62 Inch
• Inner Diameter: 0.31 Inch
• Outer Diameter: 0.42 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SCL2-Q
• Model: SCL
• Type: Butt
• Voltage Rating: 35 KV
• Conductor Size: 2 AWG
• Conductor Material: Copper
• Color Code: Brown
• Barrel Type: Long
• Catalog Description: COPPER BUTT SPLICE, LONG BARREL, #2 AWG WIRE.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 2.62 Inch; 0.31 Inch Inner Diameter; 0.42 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 2 AWG Conductor Size; Brown Color Code; Long Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCL Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983904419
• SKU Name: pand scl2q
