Product information
Overview

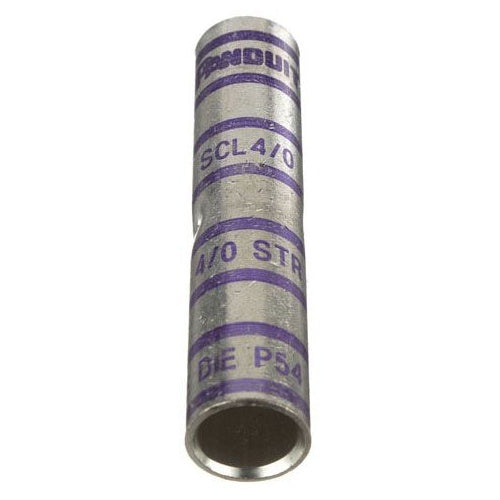

Panduit SCL4/0-X Copper Butt Splice Long 4/0Awg Pkg 10
Product Specifications
- UPC: 07498390440
- Length: 3.37 Inch
- Inner Diameter: 0.57 Inch
- Outer Diameter: 0.71 Inch
- Body Material: Tin Plated Copper
- Approval: UL, CSA
- Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
- Catalog Number: SCL4/0-X
- Model: SCL
- Type: Butt
- Voltage Rating: 35 KV
- Conductor Size: 4/0 AWG
- Conductor Material: Copper
- Color Code: Purple
- Barrel Type: Long
- Catalog Description: COPPER BUTT SPLICE, LONG BARREL, 4/0 AWG WIRE.
- Category: Large Terminals & Connectors
- Full Technical Description: Butt Type; 3.37 Inch; 0.57 Inch Inner Diameter; 0.71 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 4/0 AWG Conductor Size; Purple Color Code; Long Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCL Model
- Manufacturer: PANDUIT CORPORATION
- Sub Category: Compression Cable Splice
- Unspsc: 39121449
- UPC 12 Digit: 074983904402
- SKU Name: pand scl4/0x
