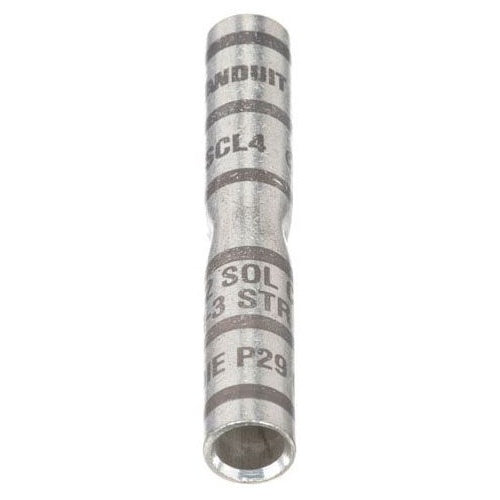

Panduit SCL4-L BuThermal Transfer Splice #4#3 Awg Str 2 Awg Sol Pk

Overview

Panduit SCL4-L BuThermal Transfer Splice #4#3 Awg Str 2 Awg Sol Pk

Product Specifications

• UPC: 07498390436
• Length: 2.38 Inch
• Inner Diameter: 0.28 Inch
• Outer Diameter: 0.38 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SCL4-L
• Model: SCL
• Type: Butt
• Voltage Rating: 35 KV
• Conductor Size: 4 to 3 AWG (Stranded), 2 AWG (Solid)
• Conductor Material: Copper
• Color Code: Gray
• Barrel Type: Long
• Catalog Description: COPPER BUTT SPLICE, LONG BARREL, #4 #3 AWG STR, #2 AWG SOL WIRE.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 2.38 Inch; 0.28 Inch Inner Diameter; 0.38 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 4 to 3 AWG (Stranded), 2 AWG (Solid) Conductor Size; Gray Color Code; Long Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCL Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983904365
• SKU Name: pand scl4l
