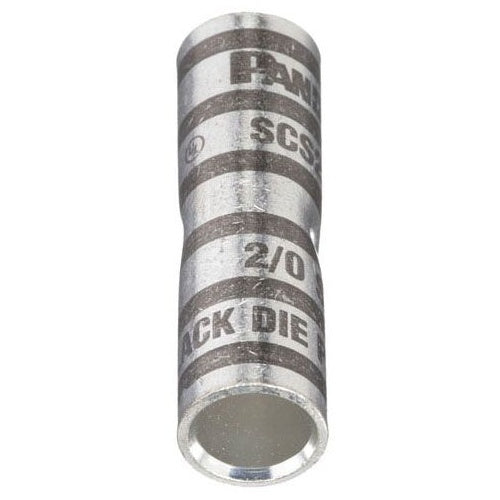

Panduit SCS2/0-X Copper Butt Splice 2/0Awg Pkg 10

Overview

Panduit SCS2/0-X Copper Butt Splice 2/0Awg Pkg 10

Product Specifications

• UPC: 07498390330
• Length: 2 Inch
• Inner Diameter: 0.45 Inch
• Outer Diameter: 0.58 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SCS2/0-X
• Model: SCS
• Type: Butt
• Voltage Rating: 35 KV
• Conductor Size: 2/0 AWG
• Conductor Material: Copper
• Color Code: Black
• Barrel Type: Standard
• Catalog Description: COPPER BUTT SPLICE, STANDARD BARREL, 2/0 AWG WIRE.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 2 Inch; 0.45 Inch Inner Diameter; 0.58 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 2/0 AWG Conductor Size; Black Color Code; Standard Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCS Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983903306
• SKU Name: pand scs2/0x
