Product information
Overview

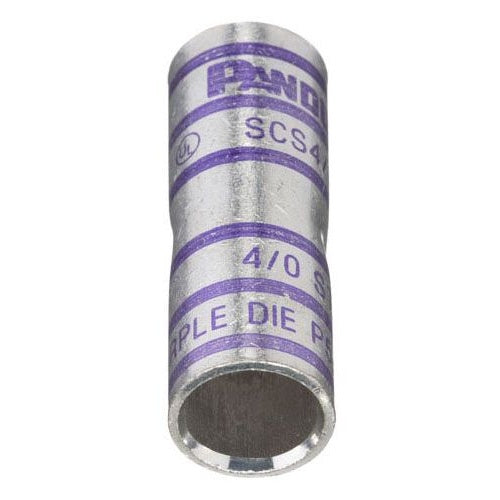

Panduit SCS4/0-X Copper Butt Splice 4/0Awg Pkg 10
Product Specifications
- UPC: 07498390340
- Length: 2.12 Inch
- Inner Diameter: 0.56 Inch
- Outer Diameter: 0.71 Inch
- Body Material: Tin Plated Copper
- Approval: UL, CSA
- Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
- Catalog Number: SCS4/0-X
- Model: SCS
- Type: Butt
- Voltage Rating: 35 KV
- Conductor Size: 4/0 AWG
- Conductor Material: Copper
- Color Code: Purple
- Barrel Type: Standard
- Catalog Description: COPPER BUTT SPLICE, STANDARD BARREL, 4/0 AWG WIRE.
- Category: Large Terminals & Connectors
- Full Technical Description: Butt Type; 2.12 Inch; 0.56 Inch Inner Diameter; 0.71 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 4/0 AWG Conductor Size; Purple Color Code; Standard Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCS Model
- Manufacturer: PANDUIT CORPORATION
- Sub Category: Compression Cable Splice
- Unspsc: 39121449
- UPC 12 Digit: 074983903405
- SKU Name: pand scs4/0x
