Product information
Overview

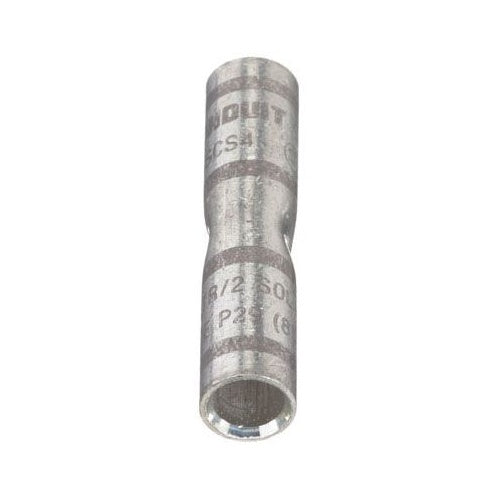

Panduit SCS4-L Copper Butt Splice C2782 Pkg 50
Product Specifications
- UPC: 07498390310
- Length: 1.75 Inch
- Inner Diameter: 0.28 Inch
- Outer Diameter: 0.38 Inch
- Body Material: Tin Plated Copper
- Approval: UL, CSA
- Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
- Catalog Number: SCS4-L
- Model: SCS
- Type: Butt
- Voltage Rating: 35 KV
- Conductor Size: 4 to 3 AWG (Stranded), 2 AWG (Solid)
- Conductor Material: Copper
- Color Code: Gray
- Barrel Type: Standard
- Catalog Description: COPPER BUTT SPLICE, STANDARD BARREL, #4 #3 AWG STR, #2 AWG SOL WIRE.
- Category: Large Terminals & Connectors
- Full Technical Description: Butt Type; 1.75 Inch; 0.28 Inch Inner Diameter; 0.38 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 4 to 3 AWG (Stranded), 2 AWG (Solid) Conductor Size; Gray Color Code; Standard Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCS Model
- Manufacturer: PANDUIT CORPORATION
- Sub Category: Compression Cable Splice
- Unspsc: 39121449
- UPC 12 Digit: 074983903108
- SKU Name: pand scs4l
