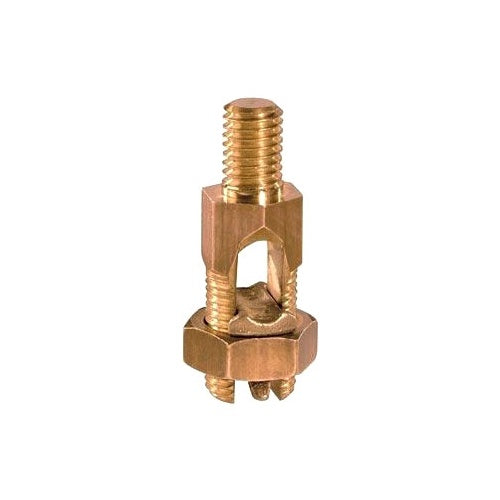

Panduit SP2-4/0-Q Service Post 1 Sol-4/0 Str Male 25Pk

Overview

Panduit SP2-4/0-Q Service Post 1 Sol-4/0 Str Male 25Pk

Product Specifications

• UPC: 07498371672
• Nut Hex Size: 1.38 INCH
• Material: HARD DRAWN COPPER
• Standard Package: 25
• Approval: UL 467
• Used On: CABLE TO STEEL STRUCTURE/FENCE POST/TRANSFORMER
• Catalog Number: SP2-4/0-Q
• Brand Name: PANDUIT[R]
• Model: SP2
• Conductor Size: 1 AWG SOLID TO 4/0 AWG STRANDED
• Number Of Conductors: 2
• Stud Diameter: 5/8 INCH-11 TPI
• Stud Length: 1 INCH
• Body Hex Size: 1.13 INCH
• Catalog Description: THE SP2-4/0-Q SERVICE POST GROUNDING LUG IS DESIGNED FOR GROUNDING TWO COPPER CODE CONDUCTORS TO STEEL STRUCTURES, BUSBARS, TRANSFORMERS. THE TRUE HEX DESIGN FOR BODY AND NUT HEX PROVIDES CORRECT FIT WITH SOCKET, BOX, OR OPEN-END WRENCHES, RESULTING IN PROPER TORQUING OF ELECTRICAL CONNECTION. THE PRESSURE BAR PROVIDES A SECURE CONNECTION ON A FULL RANGE OF CONDUCTOR COMBINATIONS USED WITH EACH LUG PROVIDING A PREMIUM WIRE PULL-OUT STRENGTH. UL LISTED FOR GROUNDING AND BONDING.
• Category: Large Terminals & Connectors
• Full Technical Description: Hard Drawn Copper Material; Cable to Steel Structure/Fence Post/Transformer Used on; 1 Inch Stud Length; UL 467 Approval; 25 Standard Package; 2 Conductor(S); 1 AWG Solid to 4/0 AWG Stranded Conductor Size; 5/8 Inch-11 TPI Stud Diameter; 1.13 Inch Body Hex Size; 1.38 Inch Nut Hex Size; PANDUIT[R] Brand; SP2 Model
• Made In Usa: Yes
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Bar To Flat Surface Post
• Unspsc: 46182103
• UPC 12 Digit: 074983716722
• SKU Name: pand sp24/0q
