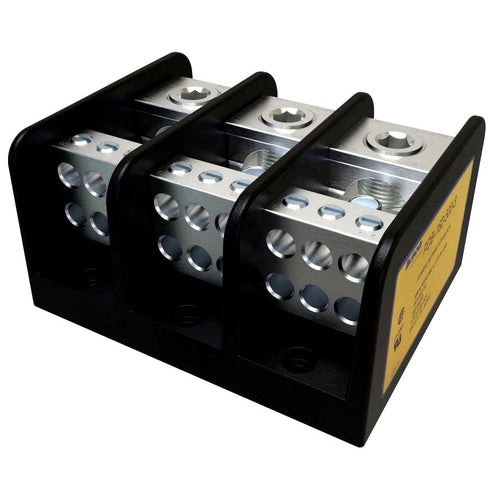

ILSCO PDB-162-500-3 Power Distribution Block

Overview

Ilsco PDB-162-500-3 Power Distribution Block

Product Specifications

• UPC: 78366971126
• Number Of Secondary Openings Per Pole: 6
• Secondary Opening Wire Size: 14 to 2 AWG
• Conductor Material: Aluminum/Copper
• Size: 5 Inch L x 4 Inch W x 2-5/8 Inch H
• Temperature Rating: 90 Deg C
• Connector Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Approval: UL 1059, CSA
• Additional Information: Hex Size 3/8 Inch (Primary), Slot (Secondary)
• Catalog Number: PDB-162-500-3
• Model: PDB
• Type: Standard
• Voltage Rating: 600 V
• Current Rating: 380 Ampere
• Number Of Poles: 3
• Number Of Primary Openings Per Pole: 1
• Primary Opening Wire Size: 4 AWG to 500 KCMIL
• Catalog Description: POWER DISTRIBUTION BLOCK, DUAL RATED, LINE CONDUCTOR RANGE 500-4, LOAD RANGE 2-14, 1 PORT PER POLE LINE SIDE, 6 PORTS PER POLE LOAD SIDE, 3 POLE, UL, CSA
• Category: Terminal Blocks & Accessories
• Full Technical Description: Standard Type; 5 Inch L X 4 Inch W X 2-5/8 Inch H Size; Aluminum/Copper Conductor Material; UL 1059, CSA Approval; 600 V Voltage Rating; 380 Ampere Current Rating; 90 Deg C Temperature Rating; 3 Pole(S); Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Connector Material; 14 to 2 AWG Secondary Opening Wire Size; 4 AWG to 500 kcmil Primary Opening Wire Size; 6 Secondary Openings Per Pole; 1 Primary Openings Per Pole; Valox [R] Brand; Hex Size 3/8 Inch (Primary), Slot (Secondary); PDB Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Power Distribution Block
• Unspsc: 39121408
• UPC 12 Digit: 783669711264
• SKU Name: pdb1625003 ilsco
