Overview

Quick-connect design for easy installation and removal, High-pressure tolerance up to 300 psi, Corrosion-resistant materials for extended service life

Product Specifications

• Category: Large Terminals & Connectors

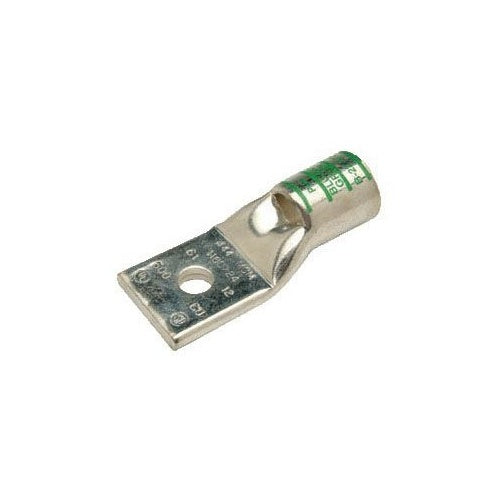

• Full Technical Description: Tin Plated Seamless Copper Material; Green Color; 2.05 Inch Overall Length; 0.94 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 1 AWG Conductor Size; 3/8 Inch Stud Size; 11 Die Index; 0.87 Inch Length X 0.67 Inch Width X 0.11 Inch Thickness Pad Size; 1 Pad Hole(S); Standard Barrel Type; PENN-CRIMPS[R] Brand; RoHS Compliant; Wire Strip Length 1-1/16 Inch; Includes Inspection Window
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 785037230308
• SKU Name: BLU1S1 PENNUNION
