Overview

High-pressure and high-temperature compatibility, Corrosion-resistant finish for extended durability, Precision-engineered for leak-free connections, Easy installation and maintenance

Product Specifications

• Category: Large Terminals & Connectors

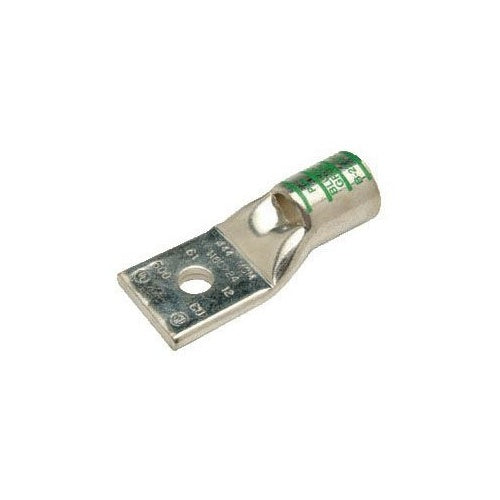

• Full Technical Description: Seamless Tin Plated Copper Material; Green Color; 1-27/64 Inch Overall Length; 5/8 Inch Barrel Length; Copper Conductor Material; UL Approval; 35 kV Voltage Rating; 1 AWG Stranded Conductor Size; 1/4 Inch Stud Size; T-11/T-375 Die Index; 9/16 Inch L X 43/64 Inch W X 7/64 Inch Thk Pad Size; 1 Pad Hole(S); PENN-CRIMPS[R] Brand; With Inspection Window; BLU Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 785037230360
• SKU Name: BLU1S9 PENNUNION
