Overview

High durability for prolonged use in industrial settings, Designed for easy installation and maintenance, Enhanced performance under extreme conditions

Product Specifications

• Category: Large Terminals & Connectors

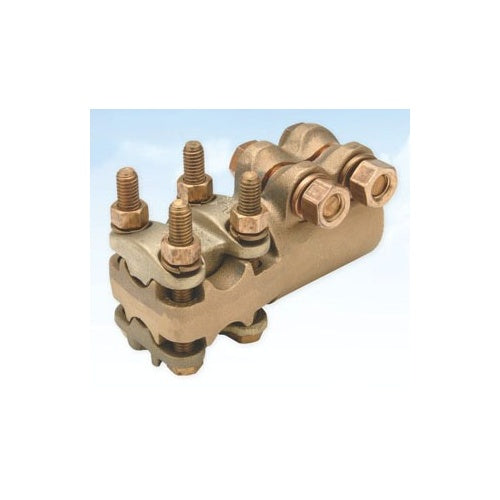

• Full Technical Description: High Copper Content Bronze Material; 5-3/4 Inch L X 2-7/8 Inch W Size; 2 AWG Solid (Small Groove), 350 MCM (Large Groove) min. Conductor Size; 350 MCM (Small Groove), 1000 MCM (Large Groove) Max. Conductor Size; Right Angled/Straight Connection Type; 1-1/8 Inch-12 TPI Stud Size; 3/8 to 3/4 Inch IPS Tube Size; Includes Silicon Bronze Bolt, Nut, Lockwasher; Number of Cable Two; CSR-2 Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Equipment Stud To Cable/Tube
• Unspsc: 39121408
• UPC 12 Digit: 785037270663
• SKU Name: PU CSR11121002
