Overview

Exceptional load-bearing capacity, Corrosion-resistant finish for extended lifespan, Precision-engineered for optimal performance

Product Specifications

• Category: Large Terminals & Connectors

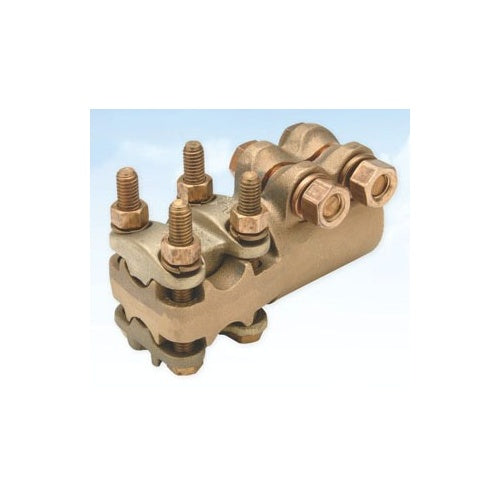

• Full Technical Description: High Copper Content Bronze Material; 5 Inch L X 2-1/8 Inch W Size; 6 AWG Solid (Small Groove), 4/0 AWG Stranded (Large Groove) min. Conductor Size; 4/0 AWG Stranded (Small Groove), 500 MCM (Large Groove) Max. Conductor Size; Right Angled/Straight Connection Type; 1-1/2 Inch-12 TPI Stud Size; 3/8 to 1/2 Inch IPS Tube Size; Includes Silicon Bronze Bolt, Nut, Lockwasher; Number of Cable Two; CSR-2 Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Equipment Stud To Cable/Tube
• Unspsc: 39121408
• UPC 12 Digit: 785037270700
• SKU Name: PU CSR15120502
