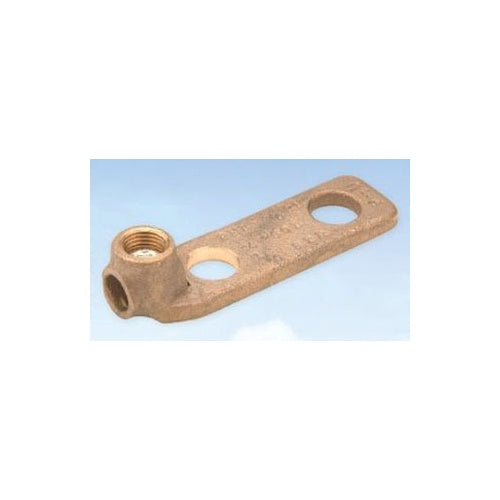

Penn-Union PNL-1/0-2 1/0 1-Conductor Terminal Lug

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: Bronze Material; 2-3/4 Inch Overall Length; 8 AWG Solid min. Conductor Size; 1/0 AWG Stranded Max. Conductor Size; UL, CSA, CUL Approval; 1 Conductor(S); 11/32 Inch Stud Size; 3/4 Inch W X 3/16 Inch Thk Pad Size; 2 Pad Hole(S); Straight Pad Type; 1/2 Inch-20 TPI Hex Socket Screw Type; PNL Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 785037507042
• SKU Name: pnl1/02 pennunion
