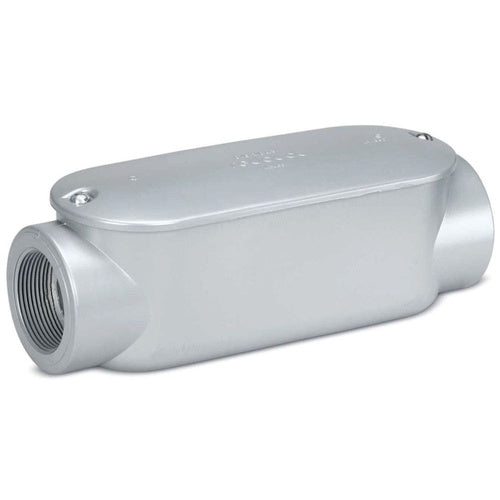

Red Dot AC-8 3" Aluminum C-Type Conduit Body
Product Specifications
- UPC: 04226930045
- Size: 12-1/4 Inch L x 4-1/2 Inch W
- Installation: Threaded
- Material: Powder Coated Urethane Die-Cast Aluminum Body, Stainless Steel Screw
- Approval: UL E28688, CSA
- Used On: Rigid/IMC Conduit
- Additional Information: Includes Cover, Gasket
- Catalog Number: AC-8
- Model: A
- Access Opening: Straight Side
- Configuration: C
- Cover Type: Die-Cast/Stamped Aluminum Alloy, Screw-On
- Hub Location: Straight
- Number Of Hubs: 2
- Hub Size: 3 Inch
- Catalog Description: 3 INCH THREADED DIE CAST ALUMINUM THRU-FEED CONDUIT BODY. FOR USE WITH RIGID/IMC CONDUIT.
- Category: Aluminum Conduit Bodies & Covers
- Full Technical Description: Powder Coated Urethane Die-Cast Aluminum Body, Stainless Steel Screw Material; 12-1/4 Inch L X 4-1/2 Inch W Size; Rigid/Imc Conduit Used on; 3 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL E28688, CSA Approval; Die-Cast/Stamped Aluminum Alloy, Screw-on Cover Type; Straight Hub Location; Straight Side Access Opening; Includes Cover, Gasket; A Model
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Red-Dot
- Sub Category: Conduit Body
- Unspsc: 39131708
- UPC 12 Digit: 042269300453
- SKU Name: rdot ac8
