Overview

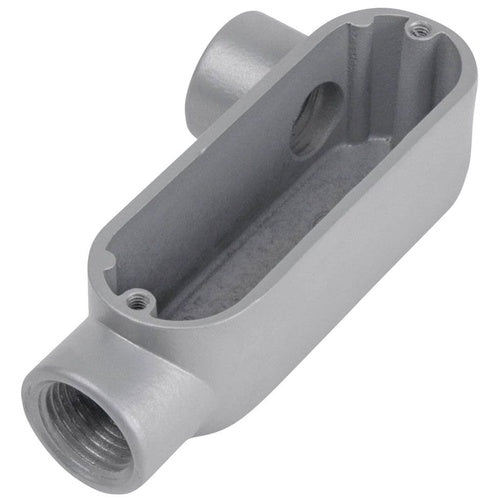

Red Dot ALR-5 1-1/2" Aluminum LR-Type Conduit Body

Product Specifications

• UPC: 04226932030
• Size: 7-1/4 Inch L x 3-3/8 Inch W
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw
• Approval: UL E28688, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Finish Powder Coated Urethane
• Catalog Number: ALR-5
• Model: A
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Die-Cast, Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 1-1/2 Inch
• Catalog Description: 1-1/2 INCH THREADED DIE CAST ALUMINUM CONDUIT BODY WITH RIGHT SIDE OPENING. FOR USE WITH RIGID/IMC CONDUIT.
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw Material; 7-1/4 Inch L X 3-3/8 Inch W Size; Rigid/Imc Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL E28688, CSA Approval; Die-Cast, Screw-on Cover Type; 90 Deg Hub Location; Right Side Access Opening; Finish Powder Coated Urethane; A Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269320307
• SKU Name: rdot alr5

Resources

• Manufacturer Spec Sheet
