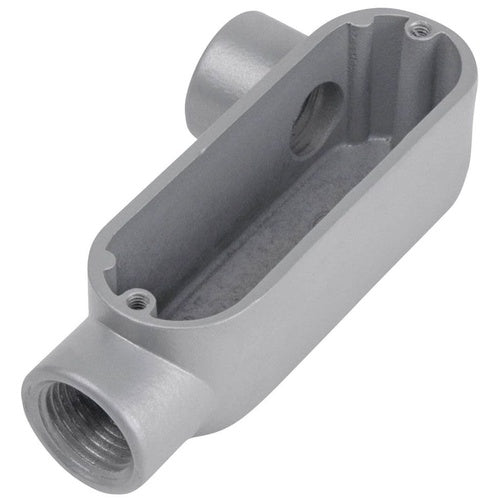

Red Dot ALR-8 3" LR-Type Conduit Body w/Cover

Overview

Red Dot ALR-8 3" LR-Type Conduit Body w/Cover

Product Specifications

• UPC: 04226932045
• Size: 12-1/4 Inch L x 5-1/2 Inch W
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw
• Approval: UL E28688, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Finish Powder Coated Urethane; Includes Cover
• Catalog Number: ALR-8
• Model: A
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Die-Cast, Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 3 Inch
• Catalog Description: 3 INCH RIGID LR CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw Material; 12-1/4 Inch L X 5-1/2 Inch W Size; Rigid/Imc Conduit Used on; 3 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL E28688, CSA Approval; Die-Cast, Screw-on Cover Type; 90 Deg Hub Location; Right Side Access Opening; Finish Powder Coated Urethane; Includes Cover; A Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269320451
• SKU Name: rdot alr8

Resources

• Manufacturer Spec Sheet
