Overview

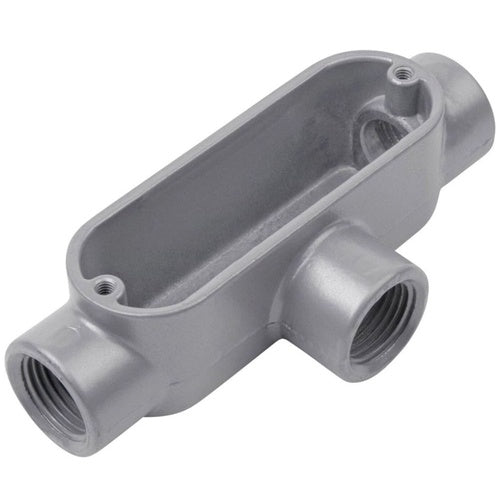

Red Dot AT-10 4" T-Type Conduit Body w/Cover

Product Specifications

• UPC: 04226932755
• Size: 15 Inch L x 6-13/16 Inch W
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw
• Approval: UL E28688, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Includes Cover
• Catalog Number: AT-10
• Model: A
• Access Opening: Tee Side
• Configuration: T
• Cover Type: Die-Cast, Screw-On
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 4 Inch
• Catalog Description: 4 INCH THREADED DIE CAST ALUMINUM CONDUIT BODY, T-STYLE. FOR USE WITH RIGID/IMC CONDUIT.
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw Material; 15 Inch L X 6-13/16 Inch W Size; Rigid/Imc Conduit Used on; 4 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL E28688, CSA Approval; Die-Cast, Screw-on Cover Type; Tee Hub Location; Tee Side Access Opening; Includes Cover; A Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269327559
• SKU Name: rdot at10

Resources

• Manufacturer Spec Sheet
