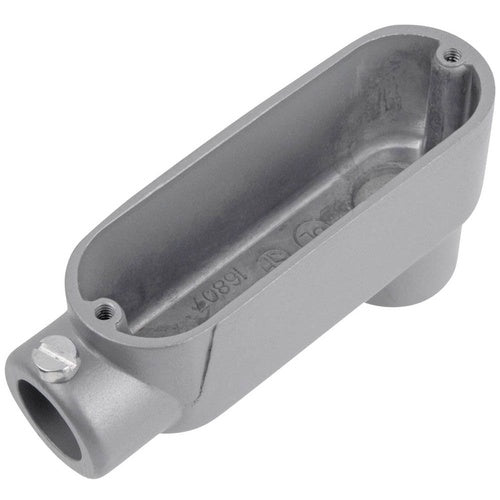

Red Dot BLB-1 1/2" Aluminum LB-Type Emt Body

Overview

Red Dot BLB-1 1/2" Aluminum LB-Type Emt Body

Product Specifications

• UPC: 04226933310
• Size: 3-7/8 Inch L x 2-1/16 Inch H
• Installation: Set Screw, Threaded
• Material: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw
• Approval: UL E28688, CSA
• Used On: EMT Conduit
• Catalog Number: BLB-1
• Model: B
• Access Opening: Back
• Configuration: LB
• Cover Type: Die-Cast Aluminum, Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 1/2 Inch
• Catalog Description: 1/2 INCH SET SCREW DIE CAST ALUMINUM CONDUIT BODY WITH BACK-OPENING. FOR USE WITH EMT CONDUIT.
• Category: Emt Conduit Bodies Only
• Full Technical Description: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw Material; 3-7/8 Inch L X 2-1/16 Inch H Size; EMT Conduit Used on; 1/2 Inch Hub Size; Set Screw, Threaded Installation; lb Configuration; 2 Hub(S); UL E28688, CSA Approval; Die-Cast Aluminum, Screw-on Cover Type; 90 Deg Hub Location; Back Access Opening; B Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269333109
• SKU Name: rdot blb1

Resources

• Manufacturer Spec Sheet
