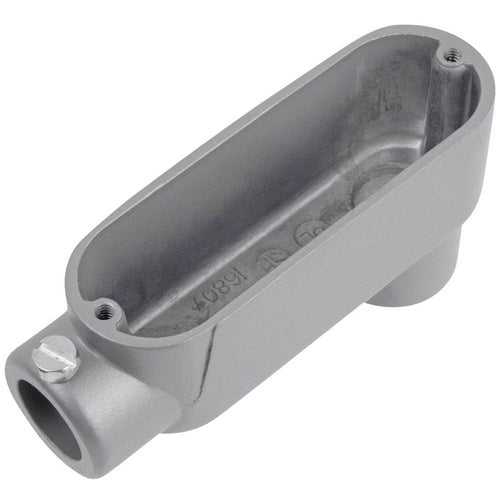

Red Dot BLB-8 3" LB-Type Emt Body w/Cover

Overview

Red Dot BLB-8 3" LB-Type Emt Body w/Cover

Product Specifications

• UPC: 04226933345
• Size: 12-1/4 Inch L x 5-7/8 Inch H
• Installation: Set Screw, Threaded
• Material: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw
• Approval: UL E28688, CSA
• Used On: EMT Conduit
• Additional Information: Includes Cover
• Catalog Number: BLB-8
• Model: B
• Access Opening: Back
• Configuration: LB
• Cover Type: Die-Cast Aluminum, Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 3 Inch
• Catalog Description: 3 INCH EMT LB CONDUIT BODY
• Category: Emt Conduit Bodies Only
• Full Technical Description: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw Material; 12-1/4 Inch L X 5-7/8 Inch H Size; EMT Conduit Used on; 3 Inch Hub Size; Set Screw, Threaded Installation; lb Configuration; 2 Hub(S); UL E28688, CSA Approval; Die-Cast Aluminum, Screw-on Cover Type; 90 Deg Hub Location; Back Access Opening; Includes Cover; B Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269333451
• SKU Name: rdot blb8
