Product information
Overview

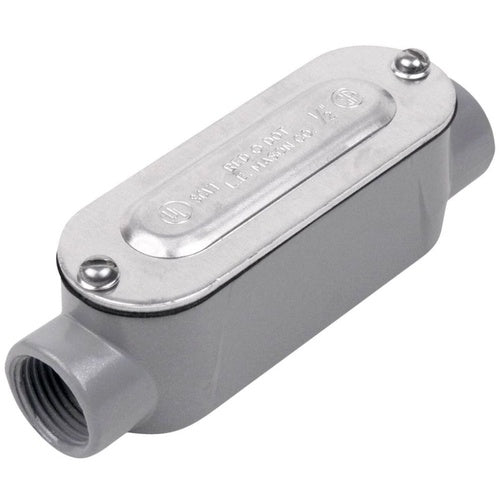

Red Dot DAC-6-CG Conduit Body Shelf Pk
Product Specifications
- UPC: 04226900213
- Hub Size: 2 Inch
- Installation: Set Screw, Threaded
- Material: Powder Coated Urethane Die-Cast Aluminum
- Approval: UL E28688, CSA
- Used On: Rigid/IMC Conduit
- Additional Information: Includes Cover, Gasket
- Catalog Number: DAC-6-CG
- Brand Name: D-PAK[R]
- Model: A
- Access Opening: Straight Side
- Configuration: C
- Cover Type: Natural Stamped, Die-Cast Powder Coated Aluminum, Screw-On
- Hub Location: Straight
- Number Of Hubs: 2
- Catalog Description: 2 INCH THREADED D-PAK DIE CAST ALUMINUM THRU-FEED CONDUIT BODY, COVER & GASKET. FOR USE WITH RIGID/IMC CONDUIT.
- Category: Aluminum Conduit Bodies & Covers
- Full Technical Description: Powder Coated Urethane Die-Cast Aluminum Material; Rigid/Imc Conduit Used on; 2 Inch Hub Size; Set Screw, Threaded Installation; C Configuration; 2 Hub(S); UL E28688, CSA Approval; Natural Stamped, Die-Cast Powder Coated Aluminum, Screw-on Cover Type; Straight Hub Location; Straight Side Access Opening; Includes Cover, Gasket; A Model
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Red-Dot
- Sub Category: Conduit Body
- Unspsc: 39131708
- UPC 12 Digit: 042269002135
- SKU Name: rdot dac6cg
