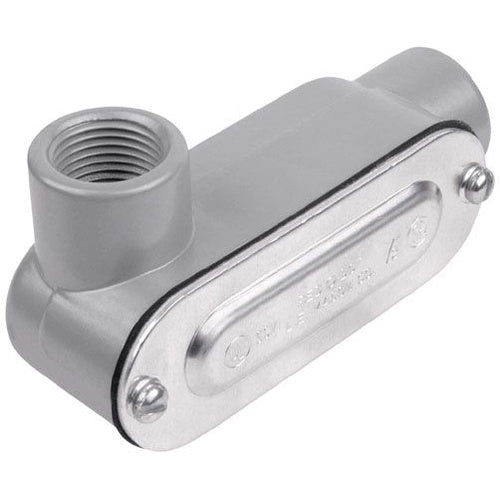

Red Dot DALL-1-CG LL-Type Conduit Body Cover & Gasket

Overview

Red Dot DALL-1-CG LL-Type Conduit Body Cover & Gasket

Product Specifications

• UPC: 04226981088
• Hub Size: 1/2 Inch
• Size: 4-5/16 Inch L x 1-3/8 Inch W
• Installation: Set Screw, Threaded
• Material: Die-Cast Aluminum
• Approval: UL E28688, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Includes Cover, Gasket
• Catalog Number: DALL-1-CG
• Brand Name: D-PAK[R]
• Model: A
• Access Opening: Left Side
• Configuration: LL
• Cover Type: Natural Stamped, Die-Cast Powder Coated Aluminum, Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: 1/2 INCH THREADED D-PAK DIE CAST ALUMINUM CONDUIT BODY-LEFT SIDE OPENING, COVER & GASKET. FOR USE WITH RIGID/IMC CONDUIT.
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Die-Cast Aluminum Material; 4-5/16 Inch L X 1-3/8 Inch W Size; Rigid/Imc Conduit Used on; 1/2 Inch Hub Size; Set Screw, Threaded Installation; LL Configuration; 2 Hub(S); UL E28688, CSA Approval; Natural Stamped, Die-Cast Powder Coated Aluminum, Screw-on Cover Type; 90 Deg Hub Location; Left Side Access Opening; D-PAK[R] Brand; Includes Cover, Gasket; A Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269810884
• SKU Name: rdot dall1cg

Resources

• Manufacturer Spec Sheet
