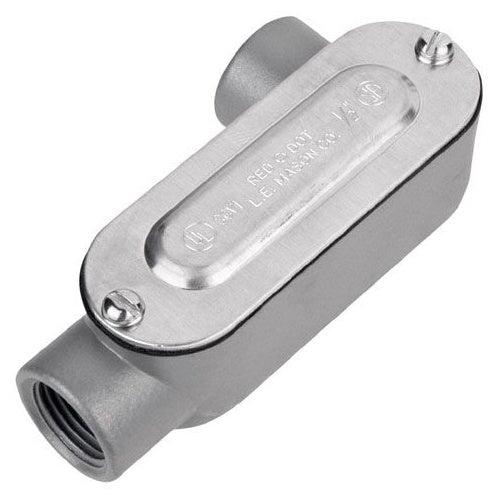

Red Dot DALR-2-CG LR-Type Conduit Body Cover & Gasket

Overview

Red Dot DALR-2-CG LR-Type Conduit Body Cover & Gasket

Product Specifications

• UPC: 04226981092
• Hub Size: 3/4 Inch
• Size: 5-1/8 Inch Length x 1-5/8 Inch Width
• Installation: Screw, Threaded
• Material: Urethane Powder Coated Die-Cast Copper-Free Aluminum (Body), Stainless Steel (Screw)
• Approval: UL E28688, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Display Ready Packaging; Includes Cover, Gasket
• Catalog Number: DALR-2-CG
• Brand Name: Red Dot
• Model: DALR
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Urethane Powder Coated Die-Cast Copper-Free Aluminum, Screw-On
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: 3/4 INCH THREADED D-PAK DIE CAST ALUMINUM CONDUIT BODY-RIGHT SIDE OPENING, COVER & GASKET. FOR USE WITH RIGID/IMC CONDUIT.
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Urethane Powder Coated Die-Cast Copper-Free Aluminum (Body), Stainless Steel (Screw) Material; 5-1/8 Inch Length X 1-5/8 Inch Width Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Screw, Threaded Installation; LR Configuration; 2 Hub(S); UL E28688, CSA Approval; Urethane Powder Coated Die-Cast Copper-Free Aluminum, Screw-on Cover Type; 90 Degree Hub Location; Right Side Access Opening; D-PAK[R] Brand; Display Ready Packaging; Includes Cover, Gasket; DALR Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269810921
• SKU Name: rdot dalr2cg

Resources

• Manufacturer Spec Sheet
