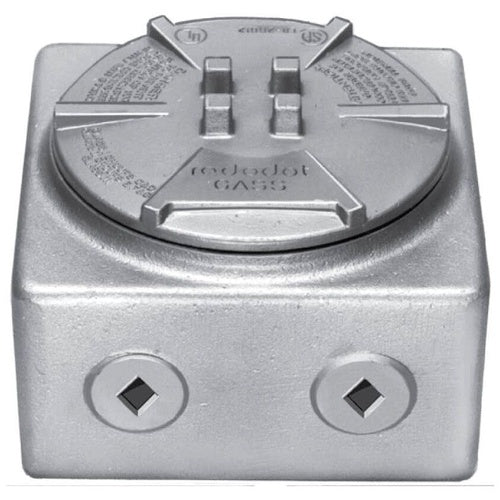

Red Dot GASS-2 Explosion-Proof Box w/Cover

Overview

Red Dot GASS-2 Explosion-Proof Box w/Cover

Product Specifications

• UPC: 04226945355
• Used On: Rigid/IMC Conduit
• Additional Information: Enclosure Type Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G; Finish Aluminum Lacquer
• Catalog Number: GASS-2
• Model: GASS
• Trade Size: 3/4 Inch
• Size: 4-5/8 Inch L x 4-5/8 Inch W x 2-3/16 Inch H
• Constructional Feature: Explosionproof, Dust Ignitionproof, Raintight
• Ground Type: Screw
• Material: Sand-Cast Aluminum Alloy (Body), Die-Cast Copper Free Aluminum (Cover)
• Approval: UL, CSA
• Catalog Description: 3/4 INCH HAZARDOUS LOCATION INTERNAL HUB WITH INSTALLED GREEN GROUND SCREW, COVER AND PLUGS, BODY ALUMINUM, COVER DIE CAST ALUMINUM, 31 CUBIC INCH
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Sand-Cast Aluminum Alloy (Body), Die-Cast Copper Free Aluminum (Cover) Material; 4-5/8 Inch L X 4-5/8 Inch W X 2-3/16 Inch H Size; Rigid/Imc Conduit Used on; UL, CSA Approval; Screw; 3/4 Inch Trade Size; Explosionproof, Dust Ignitionproof, Raintight; Enclosure Type Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G; Finish Aluminum Lacquer; GASS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121308
• UPC 12 Digit: 042269453555
• SKU Name: rdot gass2

Resources

• Manufacturer Spec Sheet
