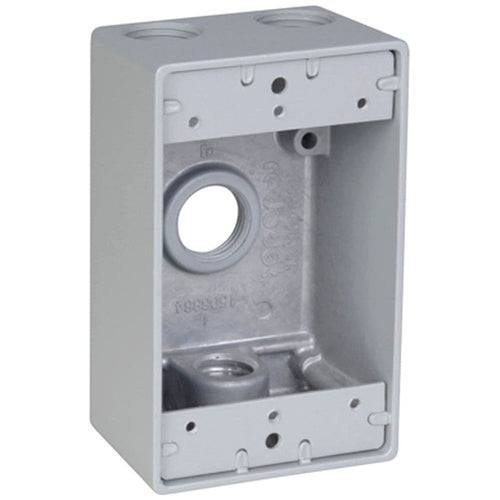

Red Dot IH4-2-LM 1-Gang Weatherproof Box w/4 3/4" Hubs

Overview

Red Dot IH4-2-LM 1-Gang Weatherproof Box w/4 3/4" Hubs

Product Specifications

• UPC: 04226939265
• Number Of Gangs: 1
• Number Of Hubs: 4
• Hub Location: (1) Back, (2) One Ends, (1) Other Ends
• Hub Size: 3/4 Inch
• Material: Die-Cast Aluminum
• Color: Silver
• Finish: Powder Coated
• Mounting: Surface
• Mounting Hardware: Lug
• Approval: UL
• Catalog Number: IH4-2-LM
• Additional Information: Enclosure Rating NEMA 3R; Includes (2) Closure Plug, Ground Screw, (2) Mounting Lug; Application Dry-Tite Box and Cover Protect Wiring Device, Switch, Electronic Component and Terminal Block, Damp Location, Dry Location, Wet Location; Applicable Standard
• Brand Name: Red Dot
• Model: IH4
• Type: Universal
• Height: 2-13/16 Inch
• Width: 4-9/16 Inch
• Depth: 2 Inch
• Capacity: 17 Cubic Inch
• Catalog Description: SINGLE GANG UNIVERSAL WEATHERPROOF BOX, 18.3 CUBIC INCHES, HUB SIZE 3/4 INCH, SILVER, ALUMINUM, 4 OUTLETS, TWO ON TOP, AND ONE ON BOTTOM AND BACK, WITH MOUNTING LUGS
• Category: Steel Outlet Boxes
• Full Technical Description: Universal Type; Die-Cast Aluminum Material; Powder Coated Finish; Silver Color; 4-9/16 Inch; 2-13/16 Inch; 2 Inch; 3/4 Inch Hub Size; 4 Hub(S); 1 Gang(S); UL Approval; Surface Mounting; 17 Cubic Inch Capacity; Lug Mounting Hardware; (1) Back, (2) One Ends, (1) Other Ends Hub Location; DRY-TITE[R] Brand; Enclosure Rating NEMA 3R; Includes (2) Closure Plug, Ground Screw, (2) Mounting Lug; Application Dry-Tite Box and Cover Protect Wiring Device, Switch, Electronic Component and Terminal Block, Damp Location, Dry Location, Wet Location; Applicable Standard Federal Specification W-C-586; IH4 Model
• Manufacturer: THOMAS & BETTS RED-DOT
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Weatherproof Device Box
• Unspsc: 39121305
• UPC 12 Digit: 042269392656
• SKU Name: rdot ih42lm
