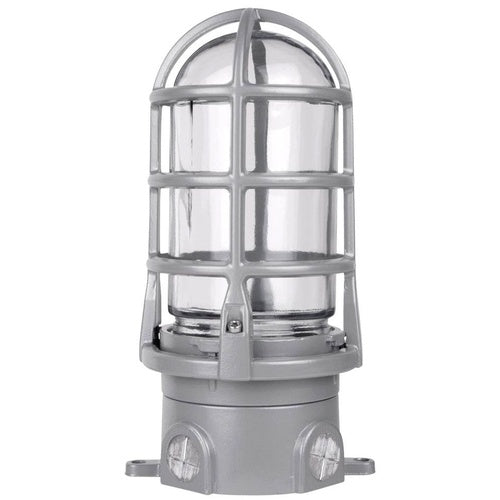

Red Dot VXG-11-C 100W Light Fixture

Overview

Red Dot VXG-11-C 100W Light Fixture

Product Specifications

• UPC: 04226967355
• Number Of Plugs: 4
• Hub Size: 1/2 Inch
• Housing Material: Die-Cast Copper-Free Aluminum
• Globe Material: Lime Crystal Glass
• Guard Material: Die-Cast Copper-Free Aluminum
• Mounting: Ceiling Cross Feed with 3-1/2 Inch Box
• Approval: UL
• Additional Information: Overall Dimension 4-1/16 Inch Width x 9-5/16 Inch Height; Cap Finish Aluminum Lacquer; Material Stainless Screw; Application Indoor, Industrial, Outdoor; Includes Globe, Guard, Gasket, Mounting Lug, Screw
• Catalog Number: VXG-11-C
• Brand Name: Red Dot
• Model: VXG
• Type: Fixture with Box
• Constructional Feature: Corrosion/Heat Resistant, Shatterproof
• Lamp Type: Incandescent
• Lamp Wattage: 100 Watt
• Number Of Hubs: 5
• Catalog Description: CEILING MOUNT CROSS FEED BOX CAP WITH GLOBE, HUB SIZE 1/2 INCH, ALUMINUM, WITH GASKETS, SOCKET WITH LEADS, SCREWS, 4 CLOSURE PLUGS, CAST MOUNTING LUGS, AND CAST GUARD, 100 WATT MAXIMUM
• Category: Incandescent Vapor Tight Lighting
• Full Technical Description: Fixture With Box Type; 1/2 Inch Hub Size; 5 Hub(S); UL Approval; Ceiling Cross Feed With 3-1/2 Inch Box Mounting; Incandescent Lamp Type; 100 Watt Lamp Wattage; Die-Cast Copper-Free Aluminum Housing Material; Corrosion/Heat Resistant, Shatterproof; 4 Plug(S); Die-Cast Copper-Free Aluminum Guard Material; Lime Crystal Glass Globe Material; Overall Dimension 4-1/16 Inch Width X 9-5/16 Inch Height; Cap Finish Aluminum Lacquer; Material Stainless Screw; Application Indoor, Industrial, Outdoor; Includes Globe, Guard, Gasket, Mounting Lug, Screw; VXG Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Vaporproof Incandescent Fixture with Globe and Guard
• Unspsc: 39111616
• UPC 12 Digit: 042269673557
• SKU Name: rdot vxg11c

Resources

• Manufacturer Spec Sheet
