Red Dot dalb2cg

Overview

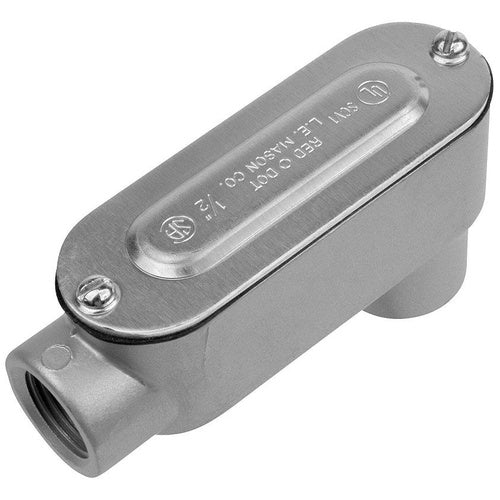

D-PakTM DALB-2-CG A Series Type LB Conduit Body With Cover, Gasket, 3/4 in Hub, 7.3 cu-in Capacity, Die Cast Aluminum

Product Specifications

• Catalog Number: DALB-2-CG
• UPC / GTIN: 042269810716
• Manufacturer Brand: Red Dot®
• UNSPSC: 39131708
• Features: Copper-free aluminum provides increased corrosion-resistance; Precision cast and machined surfaces permit safer wire pulling; Clean cover edges provide good gasket sealing; Precision NPT threaded and set screw hubs allow trouble-free field installation; Retained deep slotted stainless steel cover screws for faster installation; Clear UL, CSA and cubic content markings speed approval by inspectors; Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices; Aluminum conduit bodies can be used with steel rigid conduit NEC 346-1 and steel EMT, NEC 348-1; Combination packaging of conduit body, cover and gasket reduces handling and inventory costs; Back access opening
• Capacity: 7.3 cu-in
• Connection Type: NPT/Set Screw
• Country of Origin: India
• Dimensions: 4-5/8 in L x 5-1/8 in W x 11-7/32 in H
• ETIM: EC003618
• Hub Size: 3/4 in
• Material: Die Cast Aluminum
• Number of Hubs: 2
• Series: A Series
• Type: Type LB
