Overview

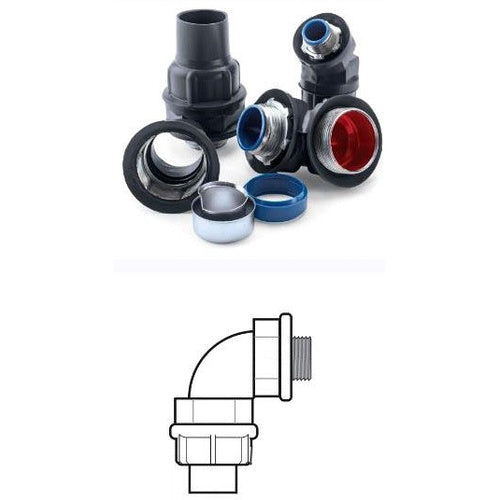

Robroy PR5351GR 3/8-Inch PVC-Coated Ferrous Metal 90-Degree Liquidtight Connector With Ground

Product Specifications

• Catalog Number: PR5351GR
• UPC: 784011208807
• Full Technical Description: product type: liquidtight connector with ground; product family: Liquid Tight Connectors; trade size: 3/8 inch; configuration: 90 degrees; body material: ferrous metal; exterior finish: nominal 0.040-inch, 40-mil gray PVC coating; interior finish: nominal 0.002-inch, 2-mil red urethane coating; grounding lug: attached external grounding lug; ground wire range: 14-8 AWG; Dimension A: 1.24 inches; Dimension B: 1.56 inches; Dimension C: 0.56 inch; nominal weight: 0.3 lb; sealing sleeve provided at the conduit opening; compatibility: liquidtight flexible conduit and PVC-coated liquidtight conduit; standards: UL 467 for steel fittings and UL 514B for steel fittings; UL files: E217890 and E200413; application: connects liquidtight flexible conduit to motors, transformers, pumps, processing equipment, boxes, and enclosures; helps seal out water and corrosive liquids to protect conductors in harsh industrial environments
• Made In Usa: Yes
• Manufacturer: Robroy Industries
• Manufacturer Brand: Plasti-Bond
• Unspsc: 39131707
