Overview

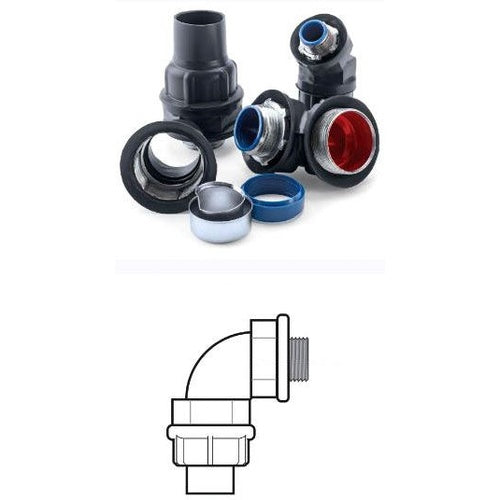

Plasti-Bond RedH2OT® PR5357 Liquid Tight Connector, 2 in Trade, 90 deg, Ferrous Metal, PVC Coated

Product Specifications

• Full Technical Description: PVC coated liquid tight connectors are used with liquid tight conduit to wire motors, transformers, processing equipment, pumps, etc. The flexible conduit and the PVC coated connector work together to seal out water and other corrosive liquids, protecting the conductors from damage.
• Catalog Number: KORPR5357
• Part Number: PR5357
• UPC: 784011208913
• Manufacturer: Robroy Industries
• Manufacturer Brand: Plasti-Bond
• Features: The flexible conduit and the PVC coated connector work together to seal out water and other corrosive liquids, protecting the conductors from damage; 40 mil gray PVC exterior coating, 2 mil red urethane interior coating; Sealing sleeves on all conduit openings; 0.88 in L thread size
• Material: Ferrous Metal
• Minimum Order Qty: 1
• Order Interval: 1
• Angle: 90
• Catalog ID: KORPR5357
• Color: Gray/Red
• Dimensions: 3.33 in W
• Finish: PVC Coated
• Suitable For Use With: Liquidtight Conduit
• Trade Size: 2 in
• Application: Electrical and Data Wire Raceways in Harsh Environments, Wire Motors, Transformers, Processing Equipment and Pumps Applications
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514B, cULus Listed, CSA C22.2 No. 18
