Overview

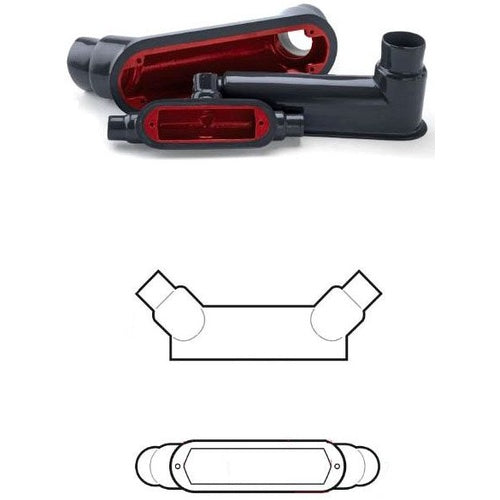

PRBUB10 Plasti-Bond, a RobRoy Company Conduit Outlet Bodies, Mogul Series, 4 Mogul Bub Fitting

Product Specifications

• Full Technical Description: Conduit Outlet Bodies, Mogul Series 4 Mogul Bub Fitting Mogul Series Information 40 mil Gray PVC Exterior Coating 2 mil Red Urethane Interior Coating 8 Trade Sizes from 1" through 4" Sealing Sleeves on All Conduit Openings Molded-In Seal between Bodies and Covers Large Cover Openings Provide Ample Room Plasti-Bond REDH2OT mogul style conduit bodies are offered in numerous configurations to provide a complete coated conduit system. Mogul BG Covers are sold separately. Mogul style fitting bodies have long openings and may be used to make bends in conduit runs, for pull outlets for stiff conductors, to provide additional room for taps or splices, etc. Electrical continuity of the conduit system is maintained across assembled joints.
• Catalog Number: PRBUB10
• Manufacturer: Plasti-Bond, a RobRoy Company
• Product Series: Mogul
• Family Series: Plasti-Bond, a RobRoy Company Conduit Outlet Bodies, Mogul Series
• Style: Mogul
• Shape: BUB
• Number of Hubs: 2
• Cover Included: No
• Gasket Included: Yes
• Conduit Type: RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 4 "
• Composition: Malleable Iron
• Approvals: cULus
• Comments: PVC Exterior Coating
• Net Weight: 0 lbs
• Gross Weight: 0 lbs
