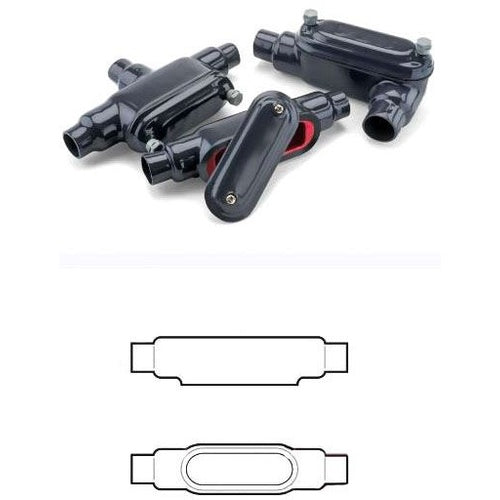

Robroy PRC39 1-Inch PVC-Coated Aluminum Mark 9 C Conduit Body

Product Specifications

• Catalog Number: PRC39
• UPC: 784011215874
• Full Technical Description: product type: Mark 9 C conduit body; body style: C; trade size: 1 inch; number of hubs: 2; connection type: threaded; body material: aluminum; exterior finish: nominal 0.040-inch, 40-mil gray PVC coating; interior finish: nominal 0.002-inch, 2-mil red urethane coating; approximate overall dimensions: 9.31 inches long x 1.92 inches wide x 1.83 inches high; color: gray exterior and red interior; sealing sleeves provided on all conduit openings; cover uses a retained stainless steel screw and wedge-clip design; enclosure ratings: NEMA 4X and IEC IP69; application: joins straight conduit runs, provides access for pulling conductors, permits taps and splices, and supports electrical and data raceways in harsh or corrosive environments
• Made In Usa: Yes
• Manufacturer: Robroy Industries
• Manufacturer Brand: Plasti-Bond
• Unspsc: 39131707
