Overview

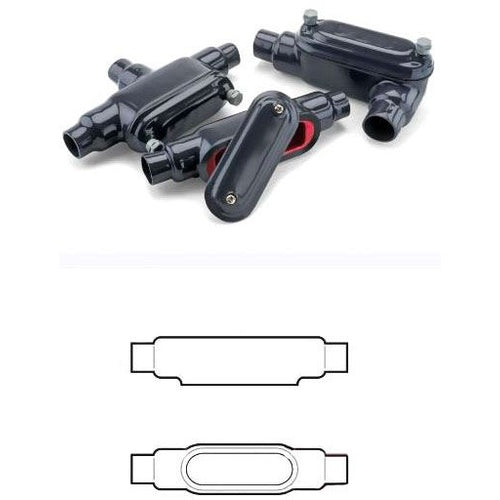

PRC47 Type-C Conduit Body With Cover, 1-1/4 in Hub, 7 Form, Steel, PVC Coated

Product Specifications

• Catalog Number: PRC47
• UPC: 784011203482
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: 10 CRFB sizes from 1/2 through 4 in; Sealing sleeves on all conduit openings; Cover uses retained stainless screw and wedge clip design; Self-retaining stainless steel cover screws; 40 mil gray PVC exterior coating; 2 mil red urethane interior coating; Covers are offered in numerous configurations to provide a complete coated conduit system; Electrical continuity of the conduit system is maintained across assembled joints
• Color: Gray/Red
• Connection Type: Thread
• Country of Origin: United States of America (the)
• Dimensions: 9.94 in L x 2.27 in W x 2.35 in H
• Finish: PVC Coated
• Form: 7
• Hub Size: 1-1/4 in
• Material: Steel
• Number of Hubs: 2
• Type: Type-C
