Product information
Overview

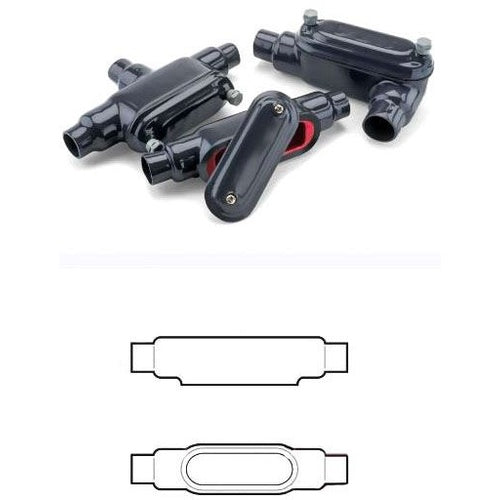

PRC57 - 1-1/2 Form 7 C Fitting
Product Specifications
- Full Technical Description: 2 MIL RED URETHANE (INTERIOR)/40 MIL GRAY PVC COATED (EXTERIOR) FERROUS METAL MATERIAL; 2.52 INCH WIDTH X 2.6 INCH HEIGHT SIZE; 1-1/2 INCH HUB SIZE; SCREW INSTALLATION; C CONFIGURATION; 2 HUB(S); UL (CANADA AND US), UL 514A/514B/514D, CSA C22.2 APPROVAL; SELF-RETAINING STAINLESS STEEL SCREW COVER TYPE; STRAIGHT HUB LOCATION; FORM 7 FORM TYPE; SIDE ACCESS OPENING; APPLICABLE STANDARD ISO 9001
- Catalog Number: PRC57
- Manufacturer: Plastibond
- Type: Conduit Body
- UNSPSC: 39131708 - Electrical conduit fitting body
- Access Opening: SIDE
- Cover Type: PVC Coated
- Hub Location: Straight
- Material: 2 MIL Red Urethane Ferrous Metal Interior, 40 MIL Gray PVC Ferrous Metal Exterior
- Number Of Hubs: 2
- Hub Size: 1-1/2 INCH
- Size: 2.6 Inch H
- Product Type: Conduit Body
- Form Type: FORM 7
- Model: PRC
- UPC: 784011203499
- GTIN: 00784011203499
- Carton: 1
- Approval: ETL, UL 514A/D, UL (Canada and US), CSA C22.2
- Configuration: C
- Installation: SCREW
