Rob Roy prc78

Overview

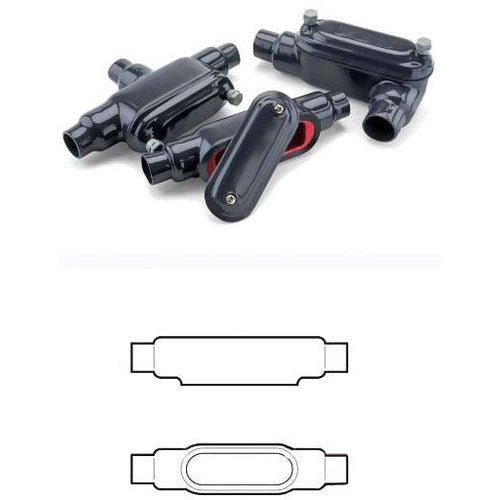

PRC78 Type-C Conduit Body With Cover, 2-1/2 in Hub, 8 Form, Steel, PVC Coated

Product Specifications

• Catalog Number: PRC78
• UPC / GTIN: 784011203437
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: 10 CRFB sizes from 1/2 through 4 in; Sealing sleeves on all conduit openings, V-seal gasket; Plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in; Self-retaining stainless steel cover screws; 40 mil gray PVC exterior coating; 2 mil red urethane interior coating; Covers are offered in numerous configurations to provide a complete coated conduit system; Electrical continuity of the conduit system is maintained across assembled joints
• Color: Gray/Red
• Connection Type: Thread
• Country of Origin: United States of America (the)
• Dimensions: 17.63 in L x 5.08 in W x 4.48 in H
• Finish: PVC Coated
• Form: 8
• Hub Size: 2-1/2 in
• Material: Steel
• Number of Hubs: 2
• Type: Type-C
