Overview

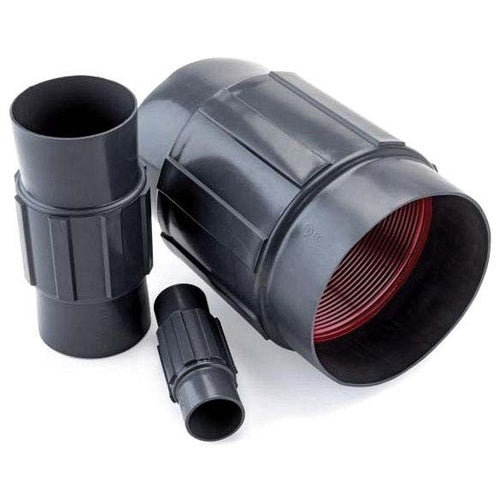

Robroy RedH2OT® PRCPLG-1/2 Conduit Coupling, 1/2 in, For Use With Rigid Metal Conduits, Steel, PVC Coated

Product Specifications

• Catalog Number: KORPRCPLG-1/2
• Part Number: PRCPLG-1/2
• UPC: 784011200610
• Manufacturer: Robroy Industries
• Manufacturer Brand: Robroy
• Features: 40 mil gray PVC exterior coating, 2 mil red urethane interior coating over galvanized threads; Sealing sleeves on both ends prevent corrosive liquids and vapors from attacking threaded joints; Molded external ribs on 1/2 to 4 in to prevent tool damage during assembly; Couplings are straight tapped; PVC coated rigid metal conduit couplings with urethane interior coating connects coated conduit sections, electrical continuity is maintained across assembled joints; 16 metric size designator; 0.5337 in effective length; 0.7584 in pitch at end of thread 3-gang/4 in taper; 0.7815 in total length of threads to vanish point; 14 TPI
• Material: Steel
• Size: 1/2 in
• Suitable For Use With: Rigid Metal Conduit
• Application: Electrical and Data Wire Raceways in Harsh Environments Applications
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 6
• Dimensions: 1.344 in OD
• Color: Gray/Red
• Finish: PVC Coated
