Overview

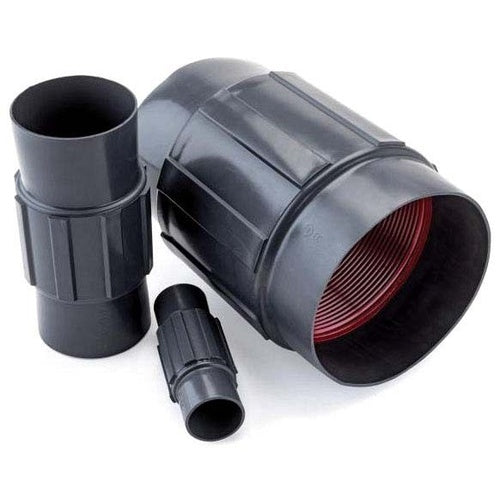

Plasti-Bond RedH2OT® PRCPLG-2-1/2 Conduit Coupling, 2-1/2 in, For Use With Rigid Metal Conduit, Steel, PVC Coated

Product Specifications

• Catalog Number: PRCPLG-2-1/2
• UPC: 784011200672
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: 40 mil gray PVC exterior coating, 2 mil red urethane interior coating over galvanized threads; Sealing sleeves on both ends prevent corrosive liquids and vapors from attacking threaded joints; Molded external ribs on 1/2 to 4 in to prevent tool damage during assembly; Couplings are straight tapped; PVC coated rigid metal conduit couplings with urethane interior coating connects coated conduit sections, electrical continuity is maintained across assembled joints; 63 metric size designator; 1.1375 in effective length; 2.7195 in pitch at end of thread 3-gang/4 in taper; 1.5712 in total length of threads to vanish point; 8 TPI
• Color: Gray/Red
• Country of Origin: United States of America (the)
• Dimensions: 3.594 in OD
• Finish: PVC Coated
• Material: Steel
• Size: 2-1/2 in
• Suitable For Use With: Rigid Metal Conduit
