Overview

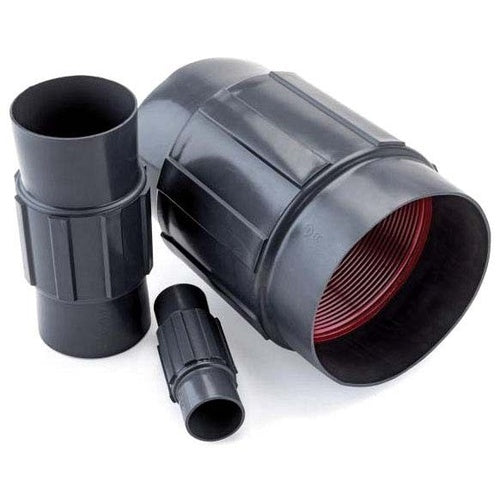

Robroy RedH2OT® PRCPLG-3/4 Conduit Coupling, 3/4 in, For Use With Rigid Metal Conduits, Steel, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond offers a complete line of PVC coated conduit, fittings and accessories manufactured by Robroy Industries. Plasti-Bond provides proven, maximum protection for electrical systems in corrosive environments. Our PVC coated conduit as well as our PVC coated fittings come with a standard 40 mil PVC coating on the exterior and a 2 mil urethane coating on the interior. Our conduit and fittings are available in both rigid steel and aluminum. Our Form 8 Fittings also have V-Seal gaskets - a patented, unique interlocking V-groove that effectively seals out corrosive environments. Plasti-Bond is not simply a product - it is a key link in a raceway system designed to beat the high cost of corrosion damage.
• Catalog Number: KORPRCPLG-3/4
• Part Number: PRCPLG-3/4
• UPC: 784011200627
• Manufacturer: Robroy Industries
• Manufacturer Brand: Robroy
• Features: 40 mil gray PVC exterior coating, 2 mil red urethane interior coating over galvanized threads; Sealing sleeves on both ends prevent corrosive liquids and vapors from attacking threaded joints; Molded external ribs on 1/2 to 4 in to prevent tool damage during assembly; Couplings are straight tapped; PVC coated rigid metal conduit couplings with urethane interior coating connects coated conduit sections, electrical continuity is maintained across assembled joints; 21 metric size designator; 0.5457 in effective length; 0.9677 in pitch at end of thread 3-gang/4 in taper; 0.7935 in total length of threads to vanish point; 14 TPI
• Material: Steel
• Minimum Order Qty: 1
• Order Interval: 1
• Catalog ID: KORPRCPLG-3/4
• Color: Gray/Red
• Dimensions: 1.531 in OD
• Finish: PVC Coated
• Size: 3/4 in
• Suitable For Use With: Rigid Metal Conduit
• Application: Electrical and Data Wire Raceways in Harsh Environments Applications
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 6
