Overview

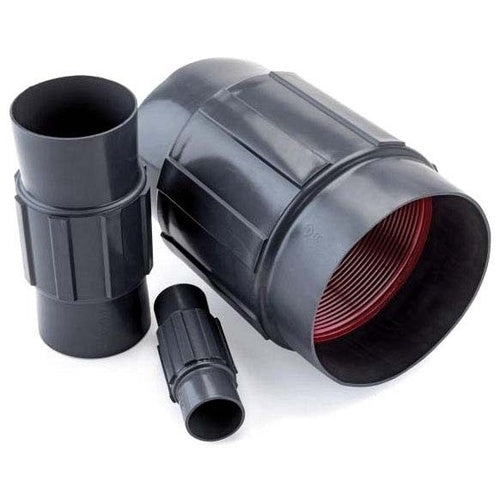

PRCPLG4 - 4" Plasti-Bond Coupling

Product Specifications

• Full Technical Description: STEEL MATERIAL; 2 MIL RED URETHANE (INTERIOR)/40 MIL GRAY PVC COATED (EXTERIOR) FINISH; UL (CANADA AND US), UL 6, CSA C22.2 APPROVAL; ISO 9001 APPLICABLE STANDARD; 8 PER PACK STANDARD PACKAGE; 4 INCH TRADE SIZE; THREADED END TYPE; TYPE STRAIGHT TAPPED; THREADS PER INCH 8; PRCPLG MODEL
• Catalog Number: PRCPLG4
• Manufacturer: Plastibond
• Type: Coupler
• UNSPSC: 39131707 - Electrical conduit coupling
• Material: Steel
• Finish: 2 Mil Red Urethane Coated Over Galvanized Threads Interior, 40 Mil Gray PVC Coated Exterior
• Additional Information: Total Length of Threads to Vanish Point 0.9845 Inch; Effective Length 0.6828 Inch; Pitch Diameter 1.2136 Inch; Outside Diameter 1.781 Inch; Thread per Inch 11-1/2
• Product Type: Coupler
• End Type: THREADED
• Manufacturers Part Number: PRCPLG-4
• UPC: 784011200702
• GTIN: 00784011200702
• Trade Size: 4 INCH
• Standard Package: 8 W
• Carton: 1
• Package: 8
• Approval: UL (Canada and US), UL 6/6A, CSA C22.2, ETL
