Overview

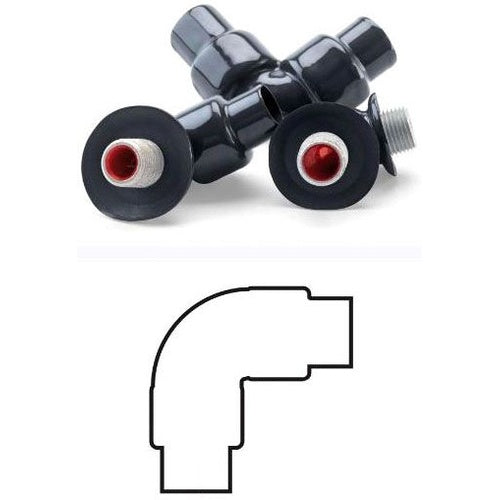

Robroy PREL79 2-1/2-Inch PVC-Coated Ferrous Metal Female/Female 90-Degree Malleable Elbow

Product Specifications

• Catalog Number: PREL79
• UPC: 784011208050
• Full Technical Description: product type: EL-style hazardous-location malleable elbow; trade size: 2-1/2 inches; bend: 90 degrees; connection type: female-to-female threaded; body material: ferrous metal; exterior finish: nominal 0.040-inch, 40-mil gray PVC coating; interior finish: nominal 0.002-inch, 2-mil red urethane coating; Dimension A: 6.88 inches; nominal weight: 7.9 lb; sealing sleeves provided on all conduit openings; hazardous-location ratings: Class I, Divisions 1 and 2, Groups B, C, and D; Class II, Division 1, Groups E, F, and G; Class II, Division 2, Groups F and G; Class III; application: changes the direction of a threaded conduit run by 90 degrees or terminates the conduit run at a fitting, box, or enclosure; designed for PVC-coated conduit systems in hazardous and corrosive environments
• Made In Usa: Yes
• Manufacturer: Robroy Industries
• Manufacturer Brand: Plasti-Bond
• Unspsc: 39131707
