Overview

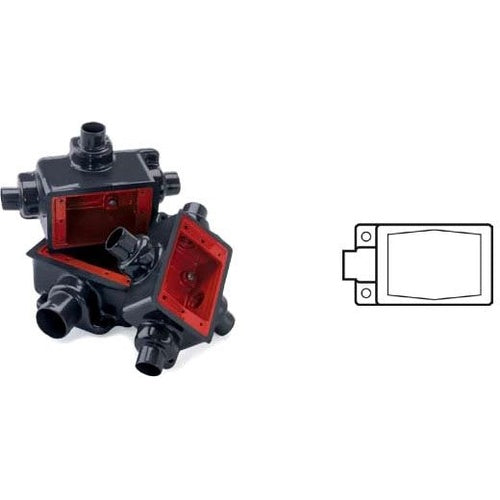

Robroy PRFD3 1-Inch PVC-Coated Ferrous Metal Deep FD Device Box Without Cover

Product Specifications

• Catalog Number: PRFD3
• UPC: 784011205158
• Full Technical Description: product type: PVC-coated cast device box; box style: FD deep; configuration: single gang; feed type: dead end; trade size: 1 inch; number of conduit openings: 1; body material: ferrous metal; exterior finish: nominal 0.040-inch, 40-mil gray PVC coating; interior finish: nominal 0.002-inch, 2-mil red urethane coating; internal grounding screw: included; sealing sleeve: provided on the conduit opening; Dimension A: 1 inch; Dimension B: 2.69 inches; Dimension C: 2.50 inches; Dimension D: 0.92 inch; nominal weight: 3.1 lb; standards: UL 514A, UL 514D, CSA C22.2 No. 18, and CSA C22.2 No. 42; UL file number: E231035; application: accommodates wiring devices, serves as a conductor pull box, and provides space for conductor splices and taps in PVC-coated conduit installations; supplied without a cover
• Manufacturer: Robroy Industries
• Manufacturer Brand: Plasti-Bond
