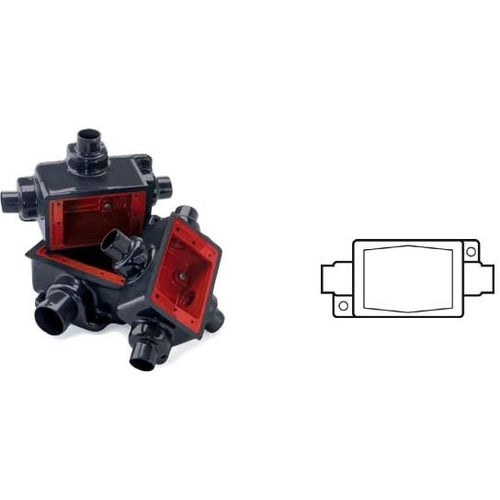

RedH2OT® PRFDC2 FD Series Deep Conduit Device Box, 3/4 in Trade, 1 Gangs, Steel, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond device boxes and covers are available in several configurations and may be used in coated conduit systems to accommodate wiring devices, to serve as pull boxes for conductors, or to allow for splices and taps in conductors. Covers are available separately. Electrical continuity of the conduit system is maintained across assembled joints.
• Catalog Number: PRFDC2
• UPC: 784011205172
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: 40 mil gray PVC exterior coating; 2 mil red urethane interior coating; 3-gang CRFB sizes 1/2 through 1 in; Internal ground screw is standard; Sealing sleeves on all conduit openings; Through feed; Single face; Without cover
• Color: Gray/Red
• Country of Origin: United States of America (the)
• Finish: PVC Coated
• Material: Steel
• Mounting Type: Lug
• Number of Gangs: 1
• Series: FD Series
• Suitable For Use With: IMC/Rigid Conduits
• Trade Size: 3/4 in
• Type: Deep
