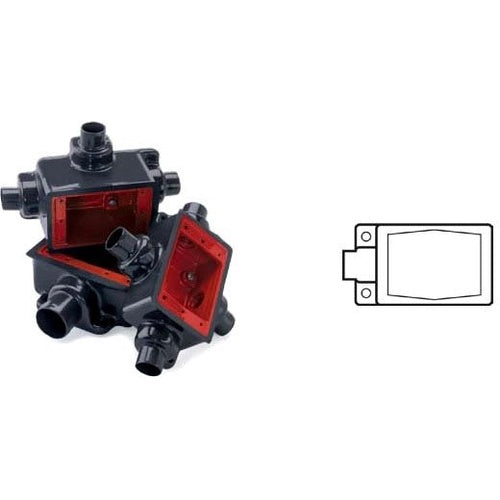

Plasti-Bond RedH2OT® PRFS3 FS Series Shallow Conduit Device Box, 1 in Trade, 1 Gang, Steel, PVC Coated

Product Specifications

• Full Technical Description: PVC coated device boxes and covers, available in several configurations, may be used in coated conduit systems to accommodate wiring devices, to serve as pull boxes for conductors or to allow for splices and taps in conductors. Electrical continuity of the conduit system is maintained across assembled joints.
• Catalog Number: KORPRFS3
• Part Number: PRFS3
• UPC: 784011205301
• Manufacturer: Robroy Industries
• Manufacturer Brand: Plasti-Bond
• Features: 40 mil gray PVC exterior coating; 2 mil red urethane interior coating; 3-gang CRFB sizes 1/2 through 1 in; Internal ground screw is standard; Sealing sleeves on all conduit openings; Dead end feed; Single face; Without cover
• Material: Steel
• Mounting Type: Lug
• Number of Gangs: 1
• Series: FS Series
• Suitable For Use With: IMC/Rigid Conduit
• Trade Size: 1 in
• Type: Shallow
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A, 514B, 514D, CSA C22.2 No. 18, CSA C22.2 No. 42
• Color: Gray/Red
• Finish: PVC Coated
• Application: For electrical and data wire raceways in harsh environments, used in coated conduit systems to accommodate wiring devices, to serve as pull boxes for conductors or to allow for splices and taps in conductors
