Rob Roy prfsc32

Overview

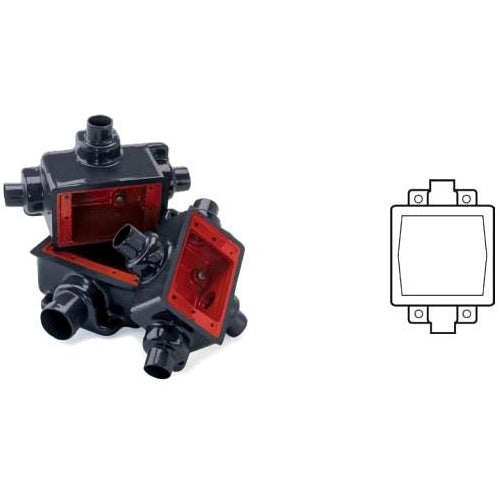

PRFSC32 - 1 FS Body W/O Cover 2 Gang

Product Specifications

• Catalog Number: PRFSC32
• UPC / GTIN: 784011205370
• Manufacturer: Plastibond
• UNSPSC: 39121315 - Cast device box
• Full Technical Description: DEVICE BOX, FEED THROUGH TYPE; 2 MIL RED URETHANE COATED FERROUS METAL INTERIOR, 40 MIL GRAY PVC COATED FERROUS METAL EXTERIOR MATERIAL; SHALLOW SHAPE; 1 INCH HUB SIZE; 2 HUB(S); 2 GANG(S); ETL, UL 514A/D, UL (CANADA AND US), CSA C22.2 APPROVAL
• Hub Location: (1) Each Side
• Material: 2 Mil Red Urethane Coated Ferrous Metal Interior, 40 Mil Gray PVC Coated Ferrous Metal Exterior
• Number Of Gangs: 2
• Number Of Hubs: 2
• Shape: Shallow
• Hub Size: 1 INCH
• Additional Information: Application Coated Conduit Systems to Accommodate Wiring Devices; Excludes Cover
• Description: 1 FS BODY W/O COVER 2 GANG
• Extra Long Description: FEED THROUGH TYPE; 2 MIL RED URETHANE (INTERIOR)/40 MIL GRAY PVC COATED (EXTERIOR) FERROUS METAL MATERIAL; 1.92 INCH; SHALLOW SHAPE; 1 INCH HUB SIZE; 2 HUB(S); 2 GANG(S); UL (CANADA AND US), UL 514A/514D, CSA C22.2 APPROVAL; (1) TOP, (1) BOTTOM HUB LOCATION; FSC CONFIGURATION TYPE; WITHOUT COVER; APPLICABLE STANDARD ISO 9001; FSC MODEL
• Long Description: DEVICE BOX, FEED THROUGH TYPE; 2 MIL RED URETHANE COATED FERROUS METAL INTERIOR, 40 MIL GRAY PVC COATED FERROUS METAL EXTERIOR MATERIAL; SHALLOW SHAPE; 1 INCH HUB SIZE; 2 HUB(S); 2 GANG(S); ETL, UL 514A/D, UL (CANADA AND US), CSA C22.2 APPROVAL
• Product Type: Device Box
• Configuration Type: FSC
• Model: FSC
• GTIN: 00784011205370
• UPC: 784011205370
• Type: FEED THROUGH
• Weight per each: 4
• Carton: 1
• Approval: ETL, UL 514A/D, UL (Canada and US), CSA C22.2
