Overview

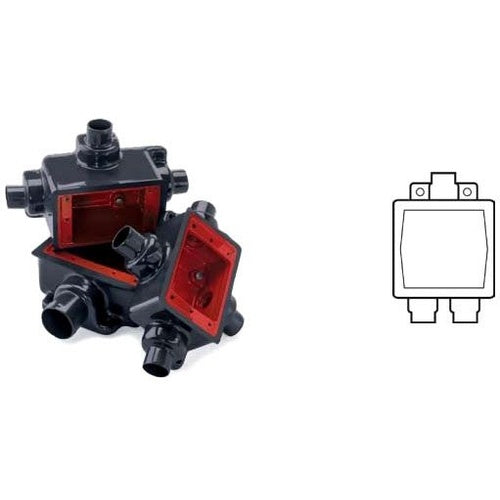

Robroy PRFSD212 3/4-Inch PVC-Coated Ferrous Metal FSD Two-Gang Feed-Through Device Box With Two 1/2-Inch Hubs

Product Specifications

• Catalog Number: PRFSD212
• UPC: 784011205424
• Full Technical Description: product type: PVC-coated FSD cast device box; product family: two-gang cast device boxes and covers; body style: FD deep; configuration: two gang; feed type: feed through; trade size: 3/4 inch; number of 1/2-inch hubs: 2; body material: ferrous metal; exterior finish: nominal 0.040-inch, 40-mil gray PVC coating; interior finish: nominal 0.002-inch, 2-mil red urethane coating; internal grounding screw: included; sealing sleeves: provided on all conduit openings; Dimension A: 0.88 inch; Dimension B: 2.69 inches; Dimension C: 1.69 inches; Dimension D: 0.79 inch; nominal weight: 2.5 lb; standards: UL 514A, UL 514D, CSA C22.2 No. 18, and CSA C22.2 No. 42; UL file number: E231035; application: accommodates wiring devices, serves as a conductor pull box, and provides space for conductor splices and taps in PVC-coated conduit systems; supplied without a cover
• Manufacturer: Robroy Industries
• Manufacturer Brand: Plasti-Bond
