Rob Roy prguab26

Overview

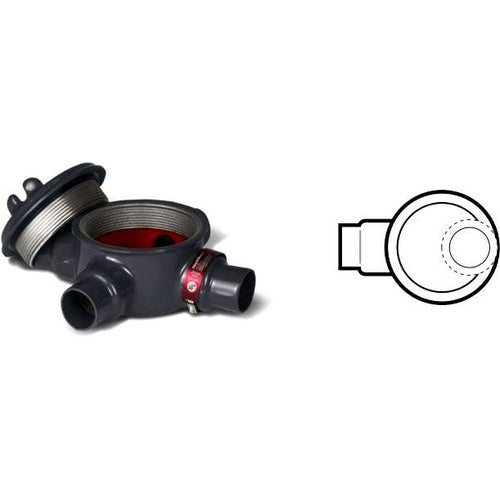

PRGUAB26 - 3/4 Guab Body With Cover

Product Specifications

• Catalog Number: PRGUAB26
• UPC / GTIN: 784011205776
• Manufacturer: Plastibond
• Type: Conduit Body and Cover
• UNSPSC: 39121308 - Outlet box
• Full Technical Description: CONDUIT BODY AND COVER, 2 MIL RED URETHANE COATED FERROUS METAL BODY INTERIOR, 40 MIL GRAY PVC COATED FERROUS METAL BODY EXTERIOR MATERIAL; ROUND SHAPE; 3/4 INCH HUB SIZE; 1 HUB(S); UL 514A/D, CSA 22.2 APPROVAL
• Hub Location: (1) Side
• Material: 2 Mil Red Urethane Coated Ferrous Metal Body Interior, 40 Mil Gray PVC Coated Ferrous Metal Body Exterior
• Number Of Hubs: 1
• Shape: Round
• Style: C
• Cover Opening Diameter: 3 INCH
• Hub Size: 3/4 INCH
• Additional Information: Cover Material Copper-Free Aluminum
• Description: 3/4 GUAB BODY WITH COVER
• Extra Long Description: 2 MIL RED URETHANE (INTERIOR)/40 MIL GRAY PVC COATED (EXTERIOR) FERROUS METAL MATERIAL; ROUND SHAPE; 3/4 INCH HUB SIZE; 3 HUB(S); UL (CANADA AND US), UL 1203, CSA C22.2 APPROVAL; CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 GROUP E F G, CLASS II DIV 2 GROUP F G, CLASS III, NEMA 3/4 ENCLOSURE; EXTERNALLY THREADED COVER TYPE; GUAB STYLE; (3) SIDE HUB LOCATION; EXTERNAL HUB TYPE; 3 INCH COVER OPENING DIAMETER; INCLUDES COPPER-FREE ALUMINUM COVER; APPLICATION HAZARDOUS LOCATION; APPLICABLE STANDARD ANSI C33.2
• Long Description: CONDUIT BODY AND COVER, 2 MIL RED URETHANE COATED FERROUS METAL BODY INTERIOR, 40 MIL GRAY PVC COATED FERROUS METAL BODY EXTERIOR MATERIAL; ROUND SHAPE; 3/4 INCH HUB SIZE; 1 HUB(S); UL 514A/D, CSA 22.2 APPROVAL
• Product Type: Conduit Body and Cover
• Hub Type: EXTERNAL
• Model: GUA
• GTIN: 00784011205776
• UPC: 784011205776
• Weight per each: 3.3
• Carton: 1
• Approval: UL 514A/D, CSA 22.2
• Enclosure: Class I Div 1 and 2 Groups C D, Class II Div 1 Groups E F G, Class II Div 2 Groups F G, Class III
