Overview

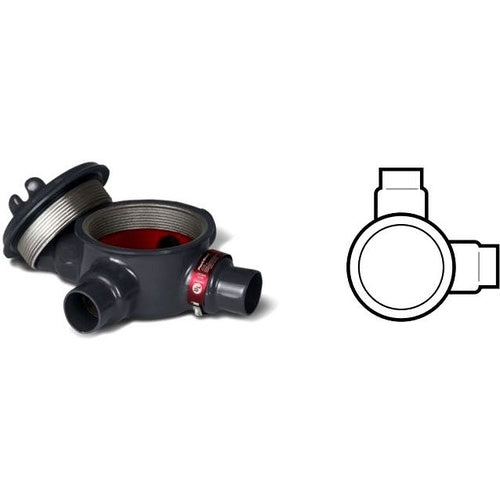

PRGUAL59SA Plasti-Bond, a RobRoy Company Electrical Boxes, REDH2OT GUA Series, 1-1/2 Al Gual Body W/Cover

Product Specifications

• Full Technical Description: Electrical Boxes, REDH2OT GUA Series 1-1/2 Al Gual Body W/Cover REDH2OT GUA Series Information 40 mil Gray PVC Exterior Coating 2 mil Red Urethane Interior Coating Trade Sizes from 1/2" through 2" in Various Styles and Configurations Sealing Sleeves on All Conduit Openings Neoprene O-Ring is Standard Molded-In PVC Seal Preserves Venting Characteristics of Fitting but Seals out Corrosives Standard Material is a Cast Iron Alloy Body with a Copper-Free Aluminum Cover Internal Green Grounding Screw is Standard Plasti-Bond REDH2OT GUA series conduit outlet boxes are installed in hazardous location conduit systems to serve as pull and splice boxes, to change the direction of a conduit run, to connect runs of conduit, or to provide access to conductors. They are provided with covers as standard. Inquire about special covers to allow use to mount lighting fixtures or as sealing fittings. Electrical continuity of the conduit system is maintained across assembled joints.
• Catalog Number: PRGUAL59SA
• Product Series: REDH2OT GUA
• Manufacturer: Plasti-Bond, a RobRoy Company
• Family Series: Plasti-Bond, a RobRoy Company Electrical Boxes, REDH2OT GUA Series
• Connection Type: Threaded
• Style: GUA
• Shape: L
• Number of Hubs: 2
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Aluminum
• Cover Composition: Aluminum
• Cover Included: Yes
• Cover Type: Surface
• Gasket Included: Yes
• Hazardous Location: Yes
• Approvals: CSA, UL
• Comments: PVC Exterior Coating, Urethane Interior Coating
• Net Weight: 0 lbs
• Gross Weight: 0 lbs
