Rob Roy prhc448

Overview

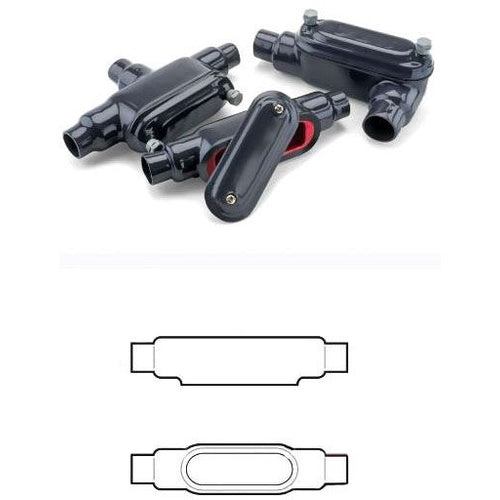

PRHC448 Type-C Conduit Body With Cover, 1-1/4 in Hub, Form 8 Form, Steel, PVC Coated

Product Specifications

• Catalog Number: PRHC448
• UPC / GTIN: 784011203406
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: 10 CRFB sizes from 1/2 through 4 in; Sealing sleeves on all conduit openings, V-seal gasket; Plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in; Covers are offered in numerous configurations to provide a complete coated conduit system; Electrical continuity of the conduit system is maintained across assembled joints; 40 mil gray PVC exterior coating; 2 mil red urethane interior coating
• Color: Gray/Red
• Connection Type: Thread
• Country of Origin: United States of America (the)
• Dimensions: 11 in L x 2.27 in W x 2.42 in H
• Finish: PVC Coated
• Form: Form 8
• Hub Size: 1-1/4 in
• Material: Steel
• Number of Hubs: 2
• Type: Type-C
