Overview

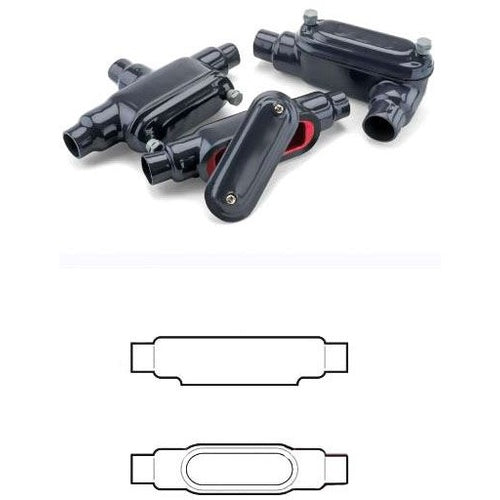

Robroy PRHC58 Type-C Conduit Body With Cover, 1-1/2 in Hub, Form 8 Form, Steel, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond RedH2OT® conduit bodies with covers are offered in Form 8 and Form 7 styles, each with numerous configurations to provide a complete coated conduit system. May be used to make 90 deg bends, for pull outlets, to provide for taps or splices, to act as a mounting outlet for wiring devices or lighting fixtures etc.. Form 8 style fittings 1/2 to 2 in have an integral V-Seal gasket for superior corrosion protection.
• Catalog Number: KORPRHC58
• Part Number: PRHC58
• UPC: 784011203413
• Manufacturer: Robroy Industries
• Manufacturer Brand: Robroy
• Features: 10 CRFB sizes from 1/2 through 4 in; Sealing sleeves on all conduit openings, V-seal gasket; Plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in; Covers are offered in numerous configurations to provide a complete coated conduit system; Electrical continuity of the conduit system is maintained across assembled joints; 40 mil gray PVC exterior coating; 2 mil red urethane interior coating
• Hub Size: 1-1/2 in
• Material: Steel
• Number of Hubs: 2
• Minimum Order Qty: 1
• Order Interval: 1
• Catalog ID: KORPRHC58
• Color: Gray/Red
• Connection Type: Threaded
• Dimensions: 13.38 in L x 2.83 in W x 2.82 in H
• Finish: PVC Coated
• Form: Form 8
• Type: Type C
• Application: For 90 deg bends, taps or splices or mounting outlets, electrical and data wire raceways in harsh environments
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to
