Overview

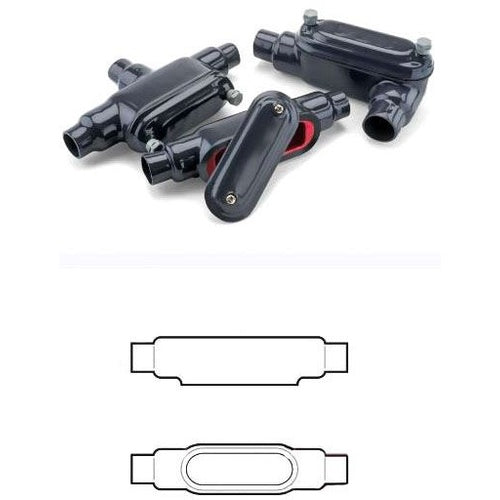

Robroy PRHC68 Type-C Conduit Body With Cover, 2 in Hub, Form 8 Form, Steel, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond RedH2OT® conduit bodies with covers are offered in Form 8 and Form 7 styles, each with numerous configurations to provide a complete coated conduit system. May be used to make 90 deg bends, for pull outlets, to provide for taps or splices, to act as a mounting outlet for wiring devices or lighting fixtures etc.. Form 8 style fittings 1/2 to 2 in have an integral V-Seal gasket for superior corrosion protection.
• Catalog Number: KORPRHC68
• Part Number: PRHC68
• UPC: 784011203420
• Manufacturer: Robroy Industries
• Manufacturer Brand: Robroy
• Features: 10 CRFB sizes from 1/2 through 4 in; Sealing sleeves on all conduit openings, V-seal gasket; Plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in; Covers are offered in numerous configurations to provide a complete coated conduit system; Electrical continuity of the conduit system is maintained across assembled joints; 40 mil gray PVC exterior coating; 2 mil red urethane interior coating
• Type: Type-C
• Number of Hubs: 2
• Material: Steel
• Finish: PVC Coated
• Hub Size: 2 in
• Form: Form 8
• Color: Gray/Red
• Connection Type: Thread
• Dimensions: 14.25 in L x 3.83 in W x 3.6 in H
