Overview

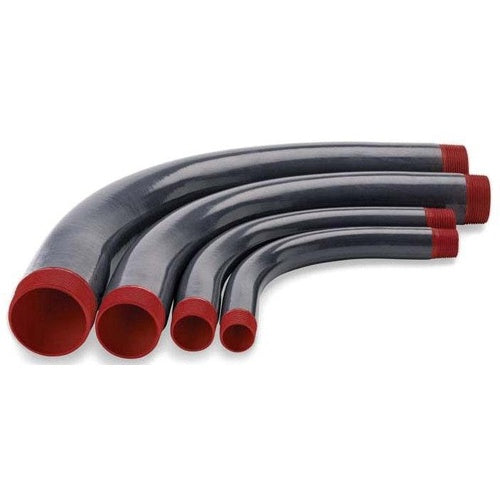

Robroy RedH2OT® PRHELB-1/2X90 Conduit Elbow, 1/2 in Trade, 90 deg, Steel, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond RedH2OT® factory bent standard radius elbows are available and ready to ship. Factory bent elbows are more accurate, quicker to install and more economical, because they save field bending time and do not waste materials. Electrical continuity is maintained across assembled joints.
• Catalog Number: KORPRHELB-1/2X90
• Part Number: PRHELB-1/2X90
• UPC: 784011200160
• Manufacturer: Robroy Industries
• Manufacturer Brand: Robroy
• Features: Factory bent standard radius elbows are available and ready to ship; Factory bent elbows are more accurate, quicker to install and more economical because they save field bending time and do not waste materials; Electrical continuity is maintained across assembled joints; Both PVC and zinc coatings investigated as primary protection against corrosion; Restricted for use with threaded fittings only; 40 mil gray PVC exterior, 2 mil red urethane interior coating; Standard radius
• Material: Steel
• Minimum Order Qty: 1
• Order Interval: 1
• Angle: 90
• Color: Gray/Red
• Finish: PVC Coated
• Series: PRHELB
• Trade Size: 1/2 in
• Application: Electrical and Data Wire Raceways in Harsh Environments Applications
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 6, File No. E2314
• Radius: 4/1/2004 12:00:00 AM
• Dimensions: 0.632 in ID x 0.92 in OD
• Catalog ID: KORPRHELB-1/2X90
